TYPE/C Insulation System
– “S-FINE”

Product priceConsultation required

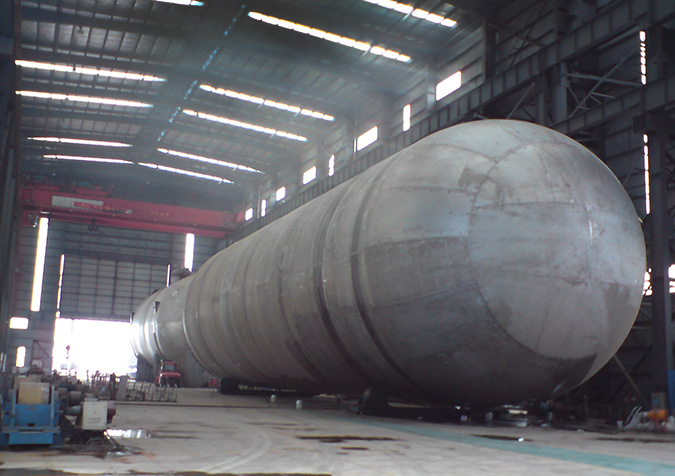

Product informationInsulation System applied to IMO C Type Tank

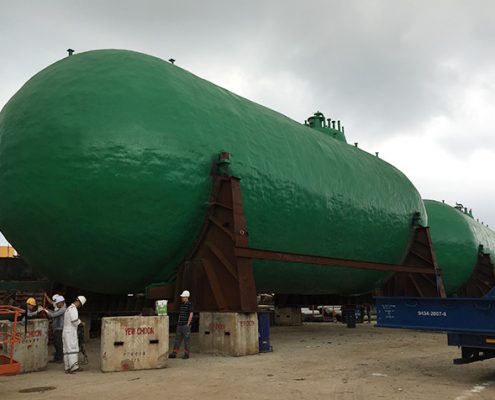

Application of spray foam on the varying density of tank surfaces
Reinforced application of crack arrester in the middle of spray foam
superior insulation performance and price competitiveness
TAG#superior insulation performance #Easy construction #Easy maintenance and repair
#2-type density Spray foam #IMO C TYPE
Product packaging and Shipping conditionsPackaging & Shipping
Download related information
General spec.

Contact Supplier

Contacts

김경민
+82-51-200-4585
kyungmkim@idongsung.com

Contact supplier

Product Info

Business Field Market Manufacturer Department
Shipbuilding/Marine Equipment Dongsung FineTec Technical Team

Product Description

Excellent against heat shock by applying spray foam of 2 or more varying density

By injecting spray foam in the middle layer crack arrester, prevents the spread of crack due to heat shrinkage

Can be installed on complex shape of tank structures

Superior insulation system with the insulation capability of spray foam itself

Convenient maintenance and excellent price competitiveness

Fp140-40

Properties Unit Allowance Test Method
Sprayed density kg/m³ 36 – 50 ASTM D1622
Compressive strength kg/cm² ≥ 1.7 ASTM D1621
Tensile strength kg/cm² ≥ 2.0 ISO 1926:2009
Thermal conductivity at 20°C W/mK ≤ 0.021 ASTM C518
at 20°C aged 4 month W/mK ≤ 0.023 ASTM C518
Dimensional stability vol% ≤ 1 ASTM 2126
Closed cell content % ≥ 90 ASTM D6226
Water absorption g/100cm² ≤ 3.0 KS M 3809
Flammability – B2 DIN 4102, Part 1

Fp140-60

Properties Unit Allowance Test Method
Sprayed density kg/m³ 50 – 56 ASTM D1622
Compressive strength kg/cm² ≥ 2.5 ASTM D1621
Tensile strength kg/cm² ≥ 2.8 ISO 1926:2009
Thermal conductivity at 20°C W/mK ≤ 0.022 ASTM C518
at 20°C aged 4 month W/mK ≤ 0.023 ASTM C518
Dimensional stability vol% ≤ 1 ASTM 2126
Closed cell content % ≥ 90 ASTM D6226
Water absorption g/100cm² ≤ 4.0 KS M 3809
Flammability – B2 DIN 4102, Part 1

Supply Ability

Contact supplier

Packing & Delivery

Contact supplier

Application

  • N/A
